MY EPIX FINALLY MAKES SENSE

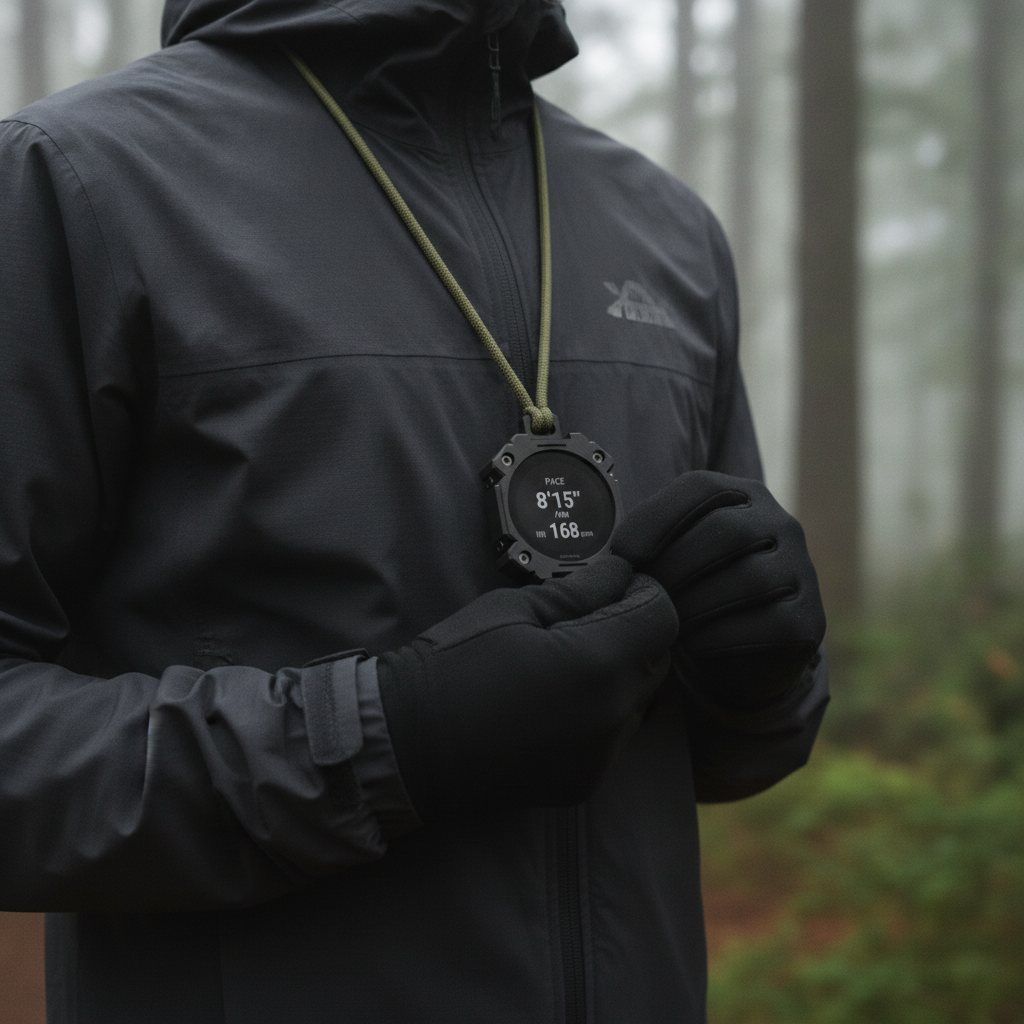

I coach a running group and never wore the 51 mm on my wrist. On the lanyard it is a stopwatch, HR monitor and GPS logger in one — and the buttons still work through the cutouts.
FIG 3.0 — CP-03 / VIEW 01SF-CP-03 / GARMIN EPIX PRO GEN 2
CP-03 Coach Pendant
The Epix Pro off the wrist and onto a lanyard — a GPS coach's stopwatch. Four bolts, shim-fitted, loop printed in.
29,00 €INCL. VAT / EXCL. SHIPPING
COLORWAY — CARBON BLACK
WEIGHT23g
MATERIALPA12-CF Nylon
COMPATGarmin Epix Pro (Gen 2), 51 mm
SKUSF-CP-03-CBN
FREE SHIPPING ABOVE 60,00 € — SHIPS IN 1-2 DAYS FROM GERMANY
5-YEAR STRUCTURAL WARRANTY. 30-DAY FIELD-TEST RETURNS.
System Description
The CP-03 turns a Garmin Epix Pro (Gen 2, 51 mm) into the instrument it secretly wants to be: a coach's stopwatch. Two carbon-nylon halves close around the watch and bolt together with four M3 torx screws in brass through-inserts — 3.0 mm of material at every hole, nothing under-built. A 1.3 mm shim ring tunes the fit, the display and buttons stay reachable, and the rectangular lanyard loop is printed into the body, sized for 4 mm paracord. Hang it on your neck, call the splits, never miss a rep.
"We don't design accessories. We design instruments. Every tenth of a millimeter matters."
— KLAUS WEBER, LEAD ENGINEER
TECHNICAL SPECIFICATIONS
DATASHEET / SF-CP-03| DIMENSIONS | 77.0 × 59.0 × 17.7 mm |
| WEIGHT (CASE) | 23 g |
| MATERIAL | PA12-CF carbon-fiber nylon |
| FASTENERS | 4 × M3 torx, stainless |
| INSERTS | 4 × brass M3×4×5, Ø3.6 thru |
| MIN WALL | 3.0 mm at every hole |
| FIT SHIM | 1.3 mm, included |
| LANYARD LOOP | integrated, 4 mm cord |
| COMPATIBILITY | Garmin Epix Pro Gen 2, 51 mm |
| TEMP RANGE | −30 … +80 °C |
| TOLERANCE | ±0.1 mm |
OPEN FILES — PRINT IT YOURSELF
REV. R2 — NOT FINAL / CC BY-NC 4.0The CP-03 Coach Pendant is an open instrument: the exact CAD we print from is downloadable below, including the threaded-insert drawing with hole positions and depths. Print it, measure it, modify it — or order ours and know precisely what you bolted together. Current revision is a working state; geometry may still move before series production.

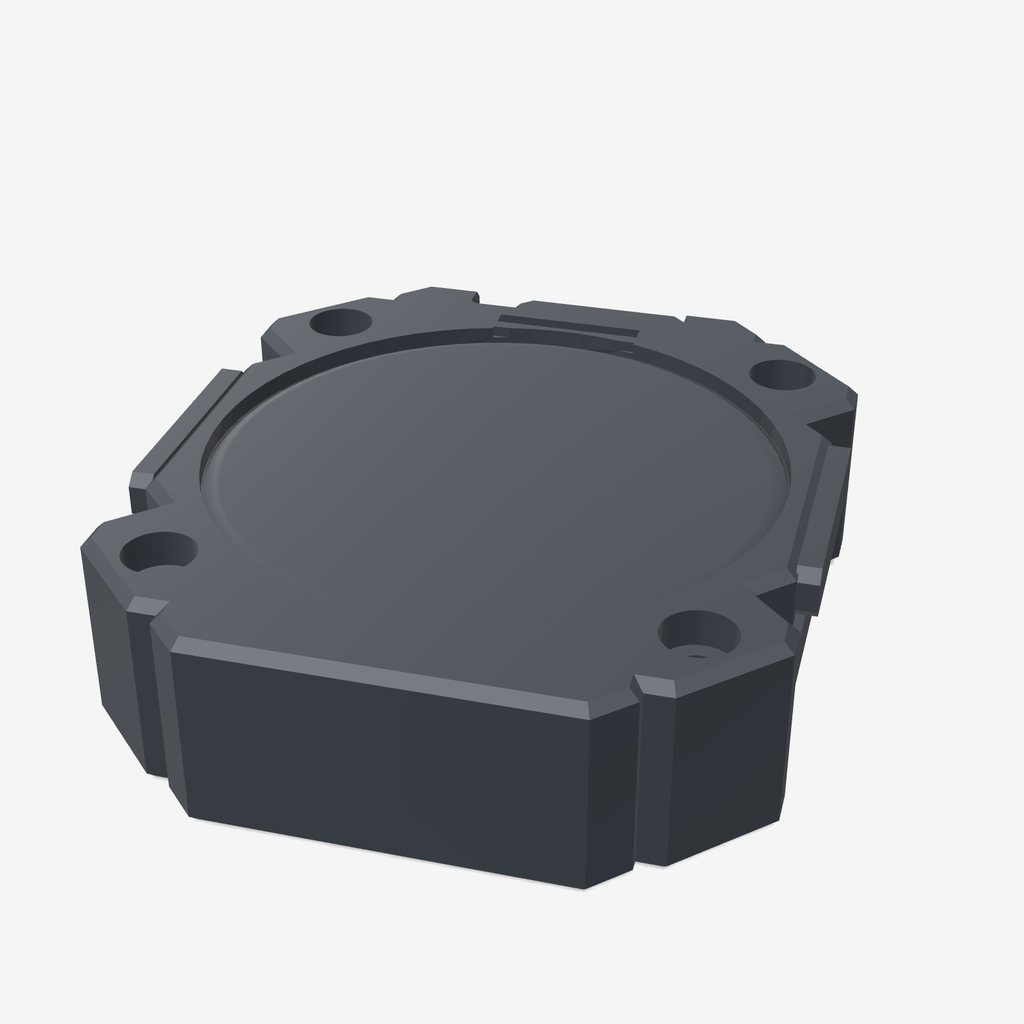

RENDERED FROM THE STL YOU DOWNLOAD
Field Reports
RATING 5.0 / 5.0 — 2 LOGSSHIM MAKES IT SOLID
With the shim in, zero rattle. Four bolts, brass threads, done. Hangs off my chest rig on 4 mm cord exactly like the old Polar coach watches did.
Questions, Answered.
01 How fast do you ship?
Parcels are dispatched from Germany within 1–2 days of your order. Standard delivery takes 5–7 days, express 2–3 days — worldwide.
02 Do you ship worldwide?
Yes. Everything is designed and printed in Germany and shipped wherever you are. Shipping is free above €60.
03 What material are the cases printed from?
Carbon-fiber-reinforced PA12 nylon (PA12-CF): stiff, light and temperature-stable from −30 °C to +80 °C. Every batch is dimension-checked against CAD to ±0.1 mm.
04 Are the STL files really free?
Yes. The exact CAD we print from is downloadable on every product page under CC BY-NC 4.0, including the threaded-insert drawings. Print it, measure it, modify it — or order ours and know precisely what you bolted together.
05 Does a bolted case affect charging, signal or buttons?
No. The openings are designed in: the MP-01 charges on any Watch charger without disassembly, the AT-02 leaves the AirTag dome exposed for signal and speaker, and the CP-03 keeps the Epix display and side buttons fully reachable.
06 Is the paracord loop included?
Yes. An olive 4 mm paracord loop ships in the box with every case — thread it through the integrated lanyard slot, no adapter needed.
07 Can I return a case?
Yes — 30-day field-test returns and a 5-year structural warranty. And if a tolerance, a chamfer or a whole idea could be better, tell me: feedback is always welcome.
